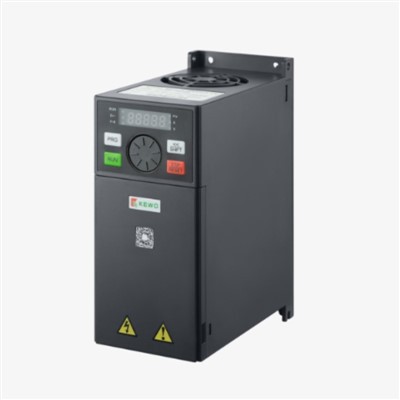

PSD350 series yog ib qho kev tiv thaiv siab tiv thaiv lub hnub ci twj tso kua mis VFD tsim los ntawm KEWO uas tuaj yeem siv nws tus kheej hauv qhov hnyav sab nraum zoov. Nws khav theeb IP65 tiv thaiv kev ntsuas thiab siv cov khoom siv kho vajtse tsim ntawm PV350, nrog rau tag nrho cov khoom siv hluav taws xob kaw rau hauv ib lub tsev rau kev tiv thaiv dej thiab plua plav. Nws ua ke nrog kev tiv thaiv siab, cov qauv kev cog lus, thiab kev ua haujlwm yooj yim, zoo kawg nkaus ua kom muaj ntau yam kev tswj xyuas txawm tias nyob rau hauv ib puag ncig hnyav.
Nta
Lub hardware txhim khu kev qha nta yog raws li nram no:
1. Nws siv Texas Instruments '32-ntsis DSP (28034/35) thiab Infineon's ntse module.
2. Lub txee raug kaw, thiab lub rooj tsavxwm PCB tau txais kev kho raws li txheej txheem.
3. Xaiv lub aviation txuas nrog cov dej tsis zoo, roj- pov thawj thiab roj- cov khoom pov thawj (yeem).
4. Nws txais ib qho kev xa tawm 24V DC fais fab mov siab - cua kiv cua ceev, uas muaj cov nyhuv cua sov zoo.
5. Tsawg tsis ua hauj lwm tus nqi thiab lub neej ua haujlwm ntev.
Kev xaiv qauv
|
Qauv |
Rated tam sim no (A) |
Cov zis voltage (V) |
Cov twj tso kua dej (KW) |
Chassis Dimensions (ntev * dav * thickness) (mm) |
Ntim Dimensions (ntev * dav * thickness) (mm) |
MPPT voltage (VDC) |
|
PSD350-2S 0.75GB |
4A |
0-220V |
0.75 kWm |
230*130*177 |
265*175*210 |
260-355 Nws |
|
PSD350-2S 1.5 GB |
7A |
0-220V |
1.5 KW TSI |
230*130*177 |
265*175*210 |
260-355 Nws |
|
PSD350-2S 2.2 GB |
9.6A |
0-220V |
2.2 kwm |
230*130*177 |
265*175*210 |
260-355 Nws |
|
PSD350-2S 3.7 GB |
17A |
0-220V |
3.7 kwm |
310*160*180 |
390*270*275 |
260-355 Nws |
|
PSD350-4TB 0.75GB |
2.1A |
0-440V |
0.75 kWm |
230*130*177 |
265*175*210 |
486-650 Nws |
|
PSD350-4TB 1.5GB |
3.8A |
0-440V |
1.5 KW TSI |
230*130*177 |
265*175*210 |
486-650 Nws |
|
PSD350-4T 2.2GB |
5.1A |
0-440V |
2.2 KW TSI |
230*130*177 |
265*175*210 |
486-650 Nws |
|
PSD350-4TB 3.7GB |
9A |
0-440V |
3.7 kWs |
230*130*177 |
265*175*210 |
486-650 Nws |
|
PSD350-4TB 5.5GB |
13A |
0-440V |
5.5 KW TSI |
260*140*155 |
335*225*245 |
486-650 Nws |
|
PSD350-4TB 7.5GB |
17A |
0-440V |
7.5 kWm |
260*140*155 |
335*225*245 |
486-650 Nws |
